Overview

The D485 multi-function handheld digital pressure gauge is suitable for measurement and on-site calibration of ventilation and air conditioning systems, clean rooms, or troubleshooting of any gas pressure systems. This handheld instrument can measure differential pressure of air and non-corrosive gases. With simple operation and clear readings, it is an indispensable testing tool for HVAC technicians, operation and maintenance engineers, and scientific researchers. When used in conjunction with the pitot tube produced by Dewey, it can be used for wind speed measurement. A standard 9V battery can provide 100 hours of normal operation. Metric or imperial units can be selected via a button switch. The large LCD display facilitates easy reading. The pressure sensor adopts a high-stability differential pressure sensor. The standard 1/8" tower connector can be connected to plastic or rubber tubing for pressure guiding. The instruction manual is printed on the back of the instrument.

Technical Specifications

● Purpose: Air and compatible gases

● Material: Aluminum alloy black shell

● Accuracy: ±0.5% F.S

● Pressure hysteresis: ±0.1%FS for all

● Limit pressure: refer to the chart

● Operating temperature: 0~40℃ (32~104℉)

● Storage temperature range: -20~80℃ (-4~176°F)

● Display: 0.4" LCD display

● Resolution: 1 Pa

● Power Supply: 9V alkaline battery. To meet the 100-hour operation requirement, the battery must not be short-circuited.

● Weight: 261g (net weight)

● Pressure connection: two quick-connect fittings 1/8" (3.18mm)

● Dimensions: 138×71×26 mm

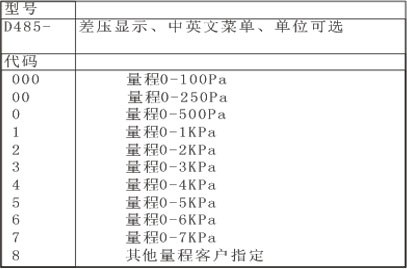

Product selection

• D485手持式差压计检定证书.pdf
• D485手持式差压计.pdf
• D485手持式差压计使用说明书.pdf
