Overview

The UP series vertical differential pressure gauge is precisely crafted from an integral transparent organic material through scientific calculations and computer simulations. Unlike traditional simple U-tube differential pressure gauges, its unique lower oil storage tank design prevents the ejection of measuring liquid caused by instantaneous pulsating pressure shocks. The overall plexiglass is sturdy and resistant to breakage and deformation, maintaining measurement accuracy over the long term. It is suitable for most gas pressure measurement applications and accurately provides positive, negative, or differential pressure measurement data. With a wide measurement range and robust structure, the dedicated red instrument oil scale indication is striking and elegant.

Features

●The red liquid column directly indicates the measured pressure value without conversion

● Adjust the zero position by moving the scale

● Resolution: 1 mmH2O or 0.5 mbar or 0.1 InWG

●The complete set includes a white PVC bracket (stainless steel bracket optional), 2 mounting screws, 2 plugs, 2 connectors, and a bottle of red oil

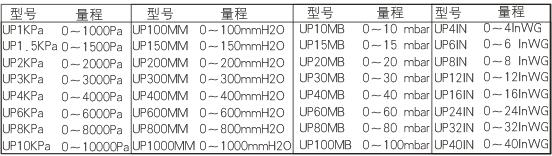

Product Selection

• UP系列垂直式差压计.pdf
